Alpine KTA-200M Mono 400-Watt DDP Power Pack Amplifier with PowerStack

Alpine KTA-200M Mono 400-Watt DDP Power Pack Amplifier with PowerStack

PowerStack Installation

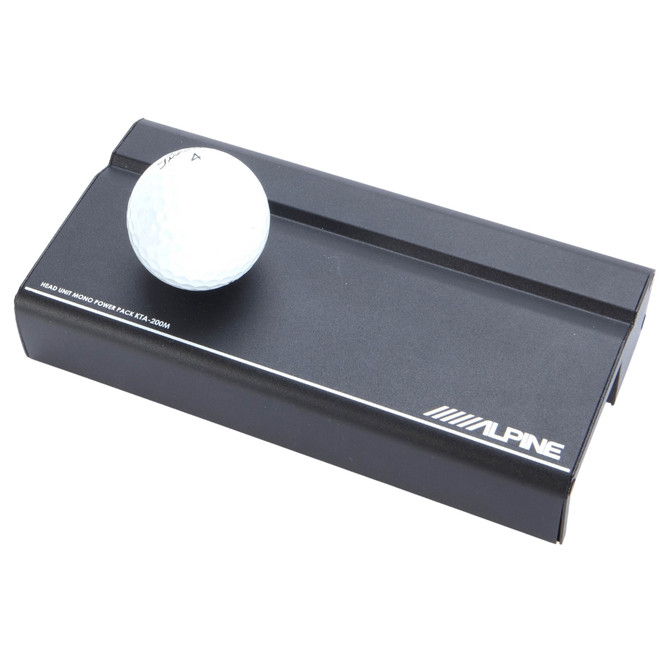

The KTA-200M fits in the open space behind Alpine’s iLX-W650 7-inch Mmech-Less (no CD/ DVD) Audio/Video receiver to create Alpine’s unique PowerStack application. The compact footprint of the amplifier (7-inch W x 1.5-inch H x 3.5-inch D) and the shallow chassis of the iLX-W650 (1.9-inch D) occupies the same depth as a traditional 2-DIN chassis, resulting in an easy, hideaway bass solution that adds more power to the sound system without taking up space.

Powerful Bass

The ratio of power to price is unmatched in the industry, as the KTA-200M doubles its power from 200 to 400 watts with Alpine’s DPP technology. During powerful, or “dynamic,” passages of music, DPP will adapt to the needs of the music by adjusting the gain of the amplifier and delivering bursts of power that match the peak demands of the music.

New to the KTA-200M, a voltage adapting input circuit is included to maintain the maximum source signal level without clipping. This ensures that the KTA-200M can continue to produce powerful, clean bass even at higher volumes and dynamic musical passages.

• CTA-2006
• PowerStack capable with the Alpine iLX-W650
• Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
• 100W x 1 RMS (4Ω, 14.4V, ≤1% THD+N)
• 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N)
• 400W x 1 DPP (2Ω, 14.4V, ≤1% THD+N)
• >85dB S/N (ref. 1W into 4Ω)
• ≤0.1% THD+N (ref. 10W into 2Ω)
• Single-side 22-pin connector
• RCA inputs (selectable, Low range=0.2-4V)

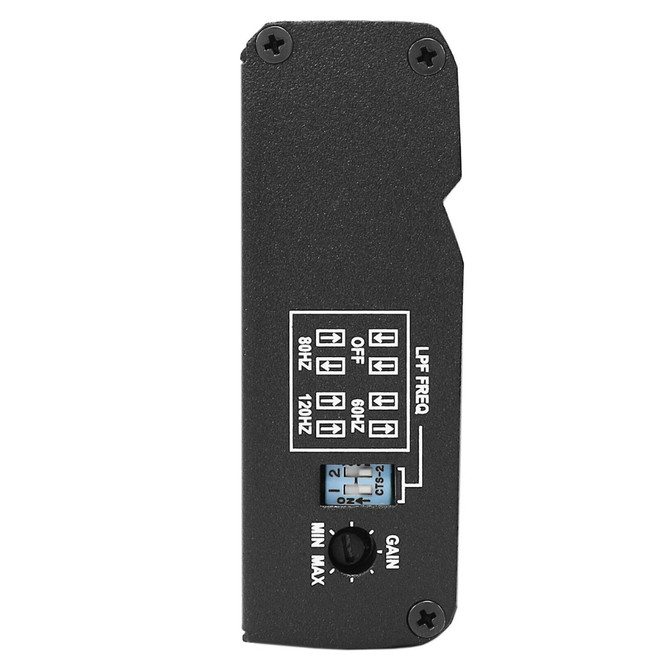

• Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
