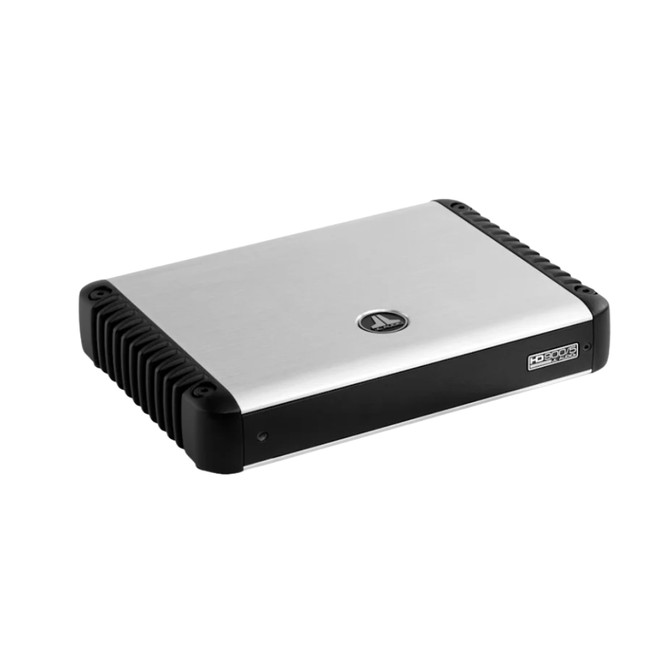

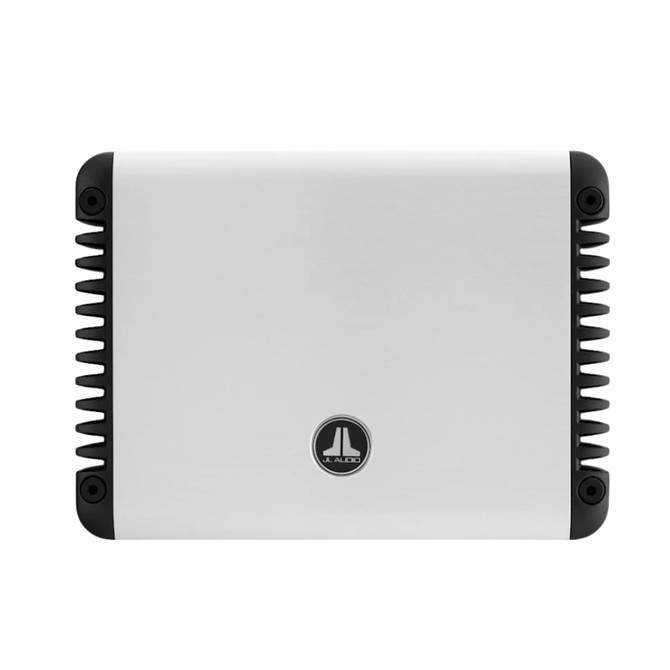

JL Audio 010-03169-00 Class D 900W RMS 4-ohms 5-Channel System Car Amplifier

JL Audio HD900/5 Class D 900W RMS 4-ohms 5-Channel System Car Amplifier

The JL Audio HD900/5 5-Channel Car Amplifier offers versatile performance with selectable 12- or 24-dB/octave filter slopes and switchable input voltage from Low (200 mV–2 V RMS) to High (800 mV–8 V RMS). Designed with removable power and speaker connectors, it supports 2-, 4-, or 6-channel input modes and includes two mounting options with a space-saving stacking design for easy installation.

Product Highlights:

• Condition: New
• 5-channel amplifier with multiple power outputs:
  • 100 W RMS x 4 @ 4Ω + 500 W RMS x 1 @ 1.5–4Ω
  • 75 W RMS x 4 @ 1.5–3Ω + 500 W RMS x 1 @ 1.5–4Ω
  • 150 W RMS x 2 bridged @ 3–6Ω + 500 W RMS x 1 @ 1.5–4Ω
• Stable operation on 11–14.5 VDC vehicle systems
• Selectable 12 dB or 24 dB/octave crossover filter slope

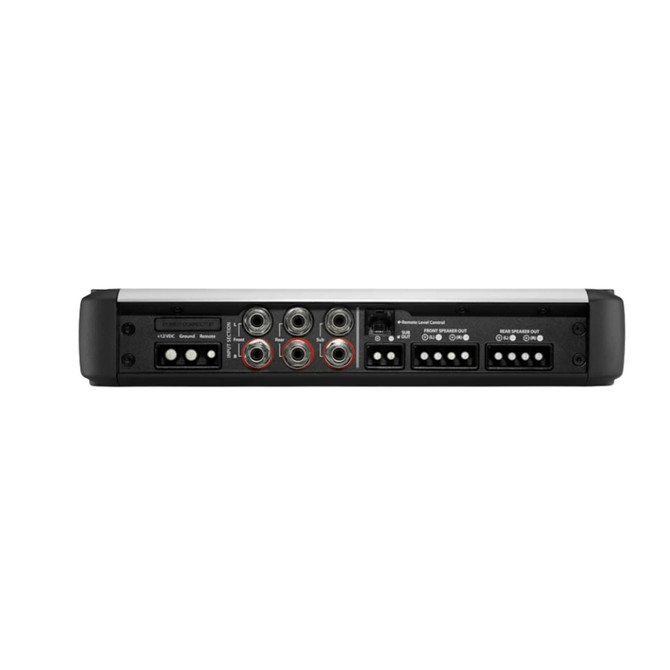

• Removable power and speaker connectors
• Selectable input voltage: Low (200 mV–2 V RMS) / High (800 mV–8 V RMS)
• Two mounting options with space-saving stacking design
• High signal clarity: 108 dB S/N ratio at rated power (88 dB @ 1 W)
• Strong control with high damping factor: >400 @ 4Ω / >200 @ 2Ω
• Ultra-low distortion: THD+N <0.03% (Main), <0.05% (Subwoofer)
• Wide frequency response: 12 Hz–28 kHz (Main) / 12 Hz–10 kHz (Subwoofer)

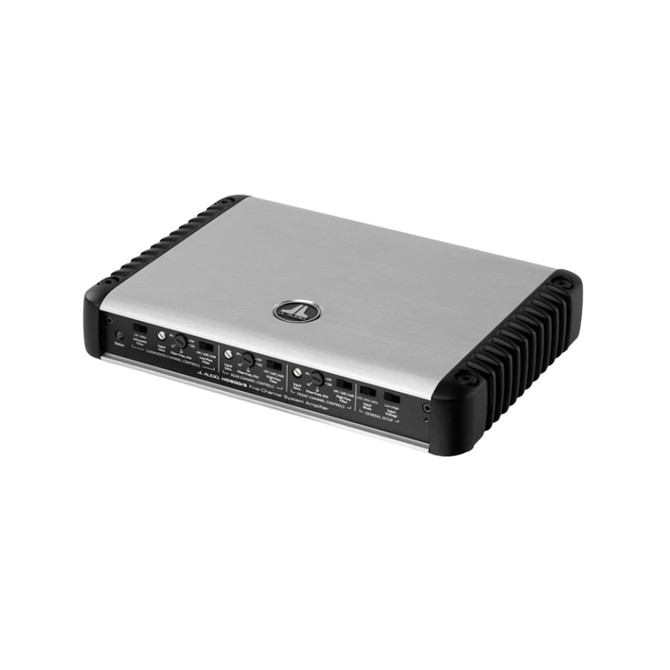

• Detented, calibrated filter knobs with channel-specific high-pass/low-pass filters
• Built-in infrasonic filter: 30 Hz, defeatable
• Optional remote level control (HD-RLC)
• Buffered pass-through preamp output
• Heavy-duty protection: 60A fuse rating, requires 4 AWG power/ground wiring
• HD900/5 / 010-03169-00
